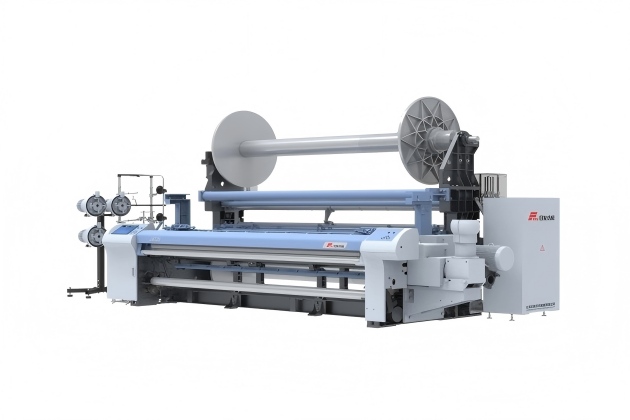

Air Jet Power Loom Performance: Speed, Airflow, and Real Fabric Output

A loom can look impressive at 1,200 rpm and still disappoint at the end of the shift.

The reason is simple: weaving mills do not sell rpm. They sell finished fabric. Between the speed shown on the machine display and the meters delivered to the inspection table, compressed-air efficiency, weft stability, fabric construction, machine stops, and quality losses all influence the final result.

This gap between “machine speed” and “real production” is where air jet loom performance should actually be measured. A well-balanced air jet power loom does more than run fast. It keeps the weft moving consistently, uses compressed air effectively, limits unnecessary stops, and maintains fabric quality over long production hours.

For mills comparing equipment, the key question is therefore not how fast a loom can run for a few minutes, but how effectively it can turn speed and airflow into first-quality fabric throughout a complete production shift.

How Does Loom Speed Translate Into Actual Fabric Output?

Loom rpm shows how many weaving cycles the machine completes each minute, but it does not directly indicate how many meters of fabric will be produced.

Fabric construction makes a major difference. A high-pick-density fabric requires more insertion cycles to produce the same length of cloth than a lower-density construction. Two looms running at the same rpm can therefore deliver very different meter output.

Production efficiency changes the result further. Every filling stop, warp stop, adjustment, or restart removes productive time from the shift. A machine capable of a high nominal speed may still fall behind if interruptions occur too frequently.

When mills compare air jet loom rpm, the conditions behind the number matter just as much as the number itself. Fabric density, reed width, yarn condition, stop frequency, and operating efficiency all determine whether speed becomes useful production.

Why Is Maximum RPM Different From Sustainable Weaving Speed?

Maximum rpm represents what the machine can reach under suitable conditions. Sustainable weaving speed represents what it can maintain reliably in normal production.

As rpm increases, the time available for shedding, weft insertion, arrival, and beat-up becomes shorter. Small changes in yarn behavior, air pressure, or machine timing become more influential.

This is why pushing a loom closer to its mechanical limit does not always improve productivity. Additional speed only creates value when weaving remains stable.

The engineering behind a high speed loom therefore matters beyond the headline rpm. Machine rigidity, beating stability, motion control, and insertion accuracy influence whether high speed can be maintained hour after hour.

How Does Airflow Affect Real Fabric Output?

Compressed air is the driving force behind weft insertion, but more air does not automatically mean better performance.

The main nozzle accelerates the yarn into the shed, while relay nozzles support it as it travels across the weaving width. The objective is to deliver enough air at the right moment to keep the yarn moving smoothly.

If airflow is insufficient, the weft may arrive late or fail to complete the insertion. If pressure is unnecessarily high, compressor demand increases without necessarily improving production.

Timing matters just as much as pressure. Relay nozzles that open too early or remain active longer than required consume additional air without providing a corresponding improvement in yarn transport.

Efficient air jet weaving therefore depends on controlled airflow rather than maximum airflow. The best operating point is the one that maintains stable weft arrival with the lowest practical air demand.

Which Performance Parameters Should Buyers Compare?

A useful loom comparison should go beyond maximum speed.

Whenever possible, different looms should be tested with the same or closely matched yarn and fabric construction.

A short maximum-speed demonstration may show mechanical capability, but a longer trial provides much more useful information. It reveals how speed, airflow, stops, efficiency, and fabric quality interact under realistic conditions.

Does Higher Speed Always Produce More Fabric per Shift?

No. Higher speed only increases productivity when the machine can maintain it without creating excessive stops or quality losses.

Consider two looms. One operates at a higher rpm but experiences frequent filling stops. The other runs slightly slower but remains stable throughout the shift.

On paper, the first machine appears more productive. In reality, every stop removes weaving time and requires operator attention. Repeated restarts can also create stop marks or other quality variation.

At the end of the shift, the slower machine may have produced more acceptable fabric.

This is why speed and efficiency should always be evaluated together. The better comparison is not “Which loom runs faster?” but “Which loom produces more first-quality fabric under normal operating conditions?”

How Does Fabric Construction Change the Best Operating Point?

There is no universal speed or airflow setting for every fabric.

Fine spun yarns, coarse yarns, filament yarns, and hairy yarns behave differently during pneumatic insertion. Wider fabrics require the yarn to remain controlled over a longer distance, while higher pick density increases the number of cycles needed to produce one meter of cloth.

Special fabric structures add another layer of complexity. An air jet terry loom must coordinate pneumatic weft insertion with pile formation and terry fabric control, so its optimum operating point cannot be judged in exactly the same way as a conventional flat-fabric loom.

In practice, mills usually achieve better results by developing separate operating settings for different fabric families instead of trying to run every construction close to maximum rpm.

Air Jet or Rapier: Which Produces Better Real Output?

The answer depends on the fabric portfolio.

Air jet weaving is particularly suitable where the yarn can be transported reliably by air and high production speed is a priority. Under suitable conditions, it can deliver strong output with stable continuous operation.

Rapier weaving uses a mechanical carrier to move the weft, which can offer greater flexibility when handling yarns that are more difficult to control aerodynamically.

For certain diversified production programs, a rapier weaving machine may therefore achieve better practical productivity even though its maximum speed is lower.

The meaningful comparison is first-quality production across the mill's actual fabric range, not peak rpm alone.

How Should a Mill Test Real Loom Performance?

A useful performance test should resemble real production as closely as possible.

Production yarn should be used whenever possible, together with representative weaving widths and fabric densities. Buyers should monitor sustainable rpm, weaving efficiency, pressure settings, stop causes, air consumption, and finished fabric quality.

The test should also run long enough to expose recurring problems. A machine may perform well during a short demonstration but develop repeated insertion instability over longer periods.

For mills that change styles frequently, changeover behavior also matters. A loom that requires extensive retuning for every new construction can lose valuable production time across a month.

The purpose of the test is therefore not to record one impressive speed figure, but to evaluate repeatability.

Why Does First-Quality Output Matter More Than Gross Output?

Gross output shows how much fabric passes through the loom. First-quality output shows how much of that fabric meets the required commercial standard.

The distinction matters because increasing speed can sometimes introduce more filling defects, stop marks, unstable selvedges, or other weaving faults.

If gross meter production rises while fabric quality falls, the mill has not necessarily improved its real productivity.

For equipment selection and production planning, first-quality output is therefore one of the most useful indicators of actual loom performance.

Conclusion

Air jet power loom performance is ultimately about how efficiently the machine converts speed and compressed air into stable, saleable fabric.

Maximum rpm remains useful as a technical reference, but sustainable speed, airflow control, fabric construction, stop frequency, weaving efficiency, and quality determine the real result.

For a weaving mill, the stronger machine is not simply the one that runs fastest. It is the one that maintains reliable production and delivers more first-quality fabric over the full working shift.

FAQ

1.Does increasing air pressure allow an air jet loom to run faster?

It can help when insufficient airflow is causing unstable weft insertion. Once the yarn is already arriving reliably, however, additional pressure may mainly increase compressed-air consumption rather than actual output.

2.Is maximum rpm a reliable way to compare two air jet looms?

Not by itself. Sustainable speed, weaving efficiency, air consumption, stop frequency, fabric conditions, and first-quality output should be evaluated together.

3.Which matters more, loom speed or weaving efficiency?

Both matter, but high rpm only creates value when the loom can maintain stable production. In practice, a slightly slower loom with better efficiency can produce more saleable fabric over a complete shift.
