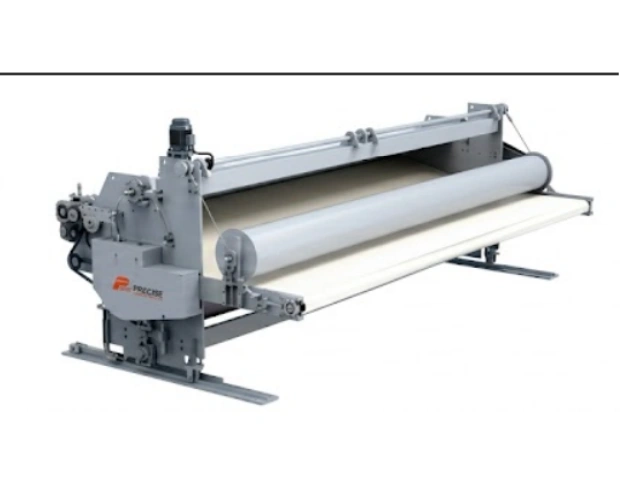

The machine is applicable to the gradual compaction of multi-layer fiber mesh that are alternately lapped by the cross lapper and induction of it into the pre-needled area via finger-type guide ring.Its main features are as follows:
○ Movable guide rail of the whole machine, easy for maintenance.
○ Anti-static curtain clamping feeding, with opening pneumatic adjustable.
○ The feeding curtain spacing is adjustable, and the feeding roller diameter is 130mm
○ The surface of feeding roller is chrome plated, the feeding motor adopts variable frequency transmission, and the feeding speed is infinitely adjustable.
○ The machine is equipped with an emergency stop switch and necessary warning signs
○ Electric lifting of conveying flat curtain

| Model | RFWR21 |
| Operating Width (mm) | 2000-9000 |
| Access speed (m/min) | ≤15 |
| Installed power (kw) | 4.95 |
| Overall dimensions (L x W x H) (mm) | 5560 x 2480 x 2010 (Width 5000) |
| Net weight of the whole machine (kg) | 3300 (Width5000) |
