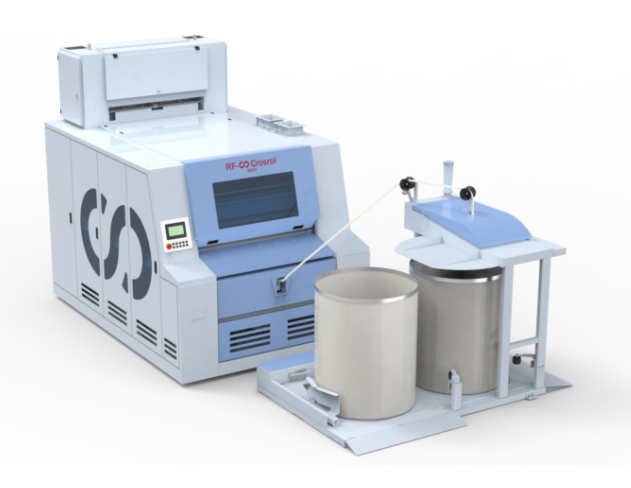

MK9 Carding Machinery

Being able to minimise and control the electricity consumption per kilogram of yarn produced is one of the key factors for the success of a spinning mill and in this regard the MK9 card is the only option, designed and configured to achieve this, please Refer to the following：

·40 inch (1020mm) cylinder diameter, motor drive torque reduced by 27% compared to conventional cards

·The cylinder is driven by converter, which can ensure that it operates within the optimal range of 30Hz-40Hz.

·All motors use energy-saving motors with the IE3 certification standards, which are far higher than similar standards in the Asian market

·All roller bearings used deep groove steel balls, self-aligning bearings, further reduce operating load.

The revolving flats guarantee the carding quality

·The carding function between the revolving flats and the cylinder is the core of the carding machine. Crosrol has always paid attention to this key function, and has devoted itself to research and pursuit of the perfect flat function for many years. Therefore, in the field of carding, the Crosrol revolving flat system is very excellent.

·Aluminum alloy revolving flats driven by synchronous toothed belt are controlled by individual motor, it’s convenient for maintenance, and the speed could be step-less adjusted.

• The feeding roller is equipped with a material lap thickness detection sensor, when the material lap is over setting, the machine will stop and alarm.

• There is a metal detector at the feeding roller to prevent metal objects from entering the carding machine and causing damage.

• The whole machine has as many as 17 transparent negative pressure suction ports, which can effectively remove impurities and dust.

• Standard revolving flats brush to ensure the best working condition of each revolving flat.

• Adopting linear double-can auto-changing which can saving space; individual driving and flexible to put position.

• Full-blown auto-broken-end device is adopted with stable motion and high success rate of eng breaking.

• Can-changing device with carriage driven by cylinder and pulley system is adopted with simple structure and high reliability.
