How to Select the Right Needle Punched Non-woven Fabrics Production Line for Your Product Requirements?

Selecting the right needle-punched nonwoven production line starts with the product specification rather than the equipment catalogue. The most important factors are the fiber type, target fabric weight, finished width, required production capacity, web uniformity, punching density, and the performance requirements of the final application. A line designed for heavy geotextiles, for example, requires a substantially different configuration from one intended for automotive interiors or filtration media.

For manufacturers investing in a new line, the objective should therefore be to determine which process configuration can consistently produce the required fabric at a commercially viable output. Maximum machine speed is only one part of that calculation. Fiber preparation, carding, cross-lapping, needle punching, process control, and downstream handling all influence the final production result.

What Should You Consider Before Choosing a Needle-Punched Nonwoven Production Line?

The first consideration should be the range of fabrics the factory intends to manufacture. Buyers should define the minimum and maximum GSM, finished width, fiber composition, thickness range, required tensile strength, and expected monthly output before comparing equipment suppliers.

For example, polyester and polypropylene are widely used in industrial nonwovens, while applications involving higher temperature resistance or flame resistance may require aramid, PPS, PTFE, or other specialized fibers. These materials do not behave identically during opening, carding, web formation, and mechanical entanglement. The equipment must therefore be compatible with the actual fiber characteristics rather than simply being described as a general-purpose system.

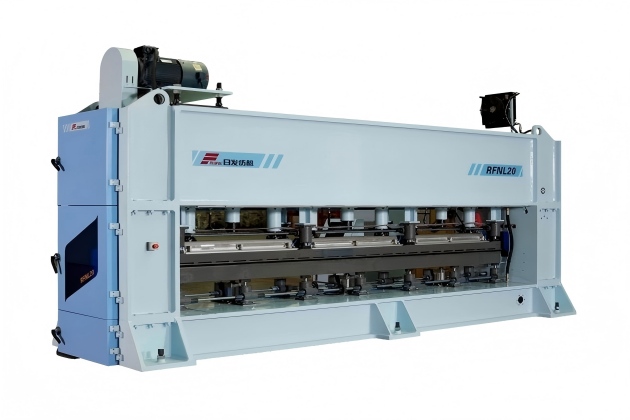

It is also important to distinguish between the theoretical capacity of a needle punch machine and its sustainable production capacity under the required fabric specification. A supplier may quote a maximum line speed, but the commercially relevant figure is the speed at which the machine can maintain the required GSM tolerance, thickness, strength, and appearance.

Which Specifications Matter Most When Selecting the Equipment?

For technical textile production, several specifications should be evaluated together rather than individually. The following parameters usually have the greatest effect on whether a production line is suitable for a particular product family.

A useful procurement specification should also identify whether the line needs to accommodate frequent product changes. A factory producing several grades of technical textile may benefit from a more flexible configuration, while a dedicated geotextile manufacturer may prioritize high throughput and stable production within a narrower operating range.

How Does Fiber Selection Affect the Production Line Configuration?

Fiber properties have a direct impact on almost every stage of needle-punched nonwoven production. Fiber length and fineness influence opening efficiency and carding performance, while crimp affects web formation and the ability of fibers to interlock during needling.

Polyester and polypropylene are relatively common choices for industrial nonwovens, but applications requiring higher thermal or flame resistance can require specialized materials. When such fibers are involved, the opening and blending section should be evaluated carefully because poor fiber preparation can create uneven webs before the material even reaches the needle loom.

The same principle applies when blended fibers are used. A blend ratio that looks appropriate from a product-design perspective may require additional process adjustment to achieve stable web formation. Buyers should therefore provide the machinery manufacturer with the actual fiber specification and blend ratio when requesting a technical proposal.

How Should Web Formation Be Matched to the Finished Fabric?

Web formation is often underestimated during equipment selection because the needle loom receives more attention. In reality, the quality of the web entering the needle-punching section strongly affects the uniformity and mechanical properties of the finished fabric.

The carding section creates the initial fiber web, while cross-lapping determines how the layers are distributed across the machine direction and cross direction. For technical textiles, this distribution is particularly important because excessive orientation in one direction can affect tensile strength and dimensional stability.

When evaluating a non woven cloth making machine supplier, buyers should therefore consider the complete upstream process rather than evaluating the needle-punching section as an isolated machine. The relationship between opening, carding, cross-lapping, pre-needling, and main needling determines whether the production line can deliver a stable finished structure.

What Configuration Is Suitable for Different Technical Textile Applications?

There is no universal needle-punched configuration that is optimal for every application. The appropriate setup depends on the balance between weight, thickness, strength, permeability, abrasion resistance, and dimensional stability required by the end product.

Geotextiles generally require consistent mass distribution and reliable mechanical properties over a wide production width. The cross-lapping and needle-punching sections therefore need to work together to create a stable three-dimensional fiber structure.

Filtration materials introduce another set of requirements. Uniformity becomes particularly important because variations in fiber distribution or fabric density can influence permeability and filtration performance. In such applications, process stability may be more important than simply maximizing line speed.

Automotive interior materials can place greater emphasis on thickness, acoustic or thermal properties, surface quality, and dimensional stability. If the factory intends to manufacture several automotive grades, flexibility in fiber blends and fabric weights may become an important equipment-selection criterion.

Specialized materials such as aramid or other heat-resistant fibers require even closer attention to fiber handling and needle-punching parameters. The machine configuration should be validated against the actual material rather than assuming that a standard polyester-oriented line will deliver the same results.

How Important Is Automation When Choosing a Nonwoven Production Line?

Automation becomes increasingly valuable as production volume and product complexity increase. A modern nonwoven production line should provide stable control of critical process parameters while minimizing unnecessary manual adjustments between production stages.

Process control can improve repeatability by coordinating feeding, web formation, needle penetration, needle frequency, line speed, and other operating parameters. This is particularly useful when producing technical textiles where relatively small variations in fabric weight or structure can affect downstream performance.

However, automation should be evaluated according to its practical contribution to production. A sophisticated control system is valuable when it improves consistency, reduces setup time, records process data, or supports repeatable production. It should not be selected simply because a machine has more automated functions than a competing system.

How Should Production Capacity Be Calculated?

Production capacity should be calculated using the actual product specification rather than the machine's maximum advertised speed. Finished width, GSM, operating speed, uptime, changeover frequency, and acceptable-product yield all affect saleable output.

For instance, a heavy fabric may need a slower operating speed to achieve sufficient fiber entanglement, while a lighter product may be processed considerably faster. Similarly, frequent changes between product grades can reduce effective monthly output even when the machine itself has a high theoretical speed.

For this reason, buyers should ask manufacturers to provide a production estimate based on specific product recipes. A useful quotation should identify the expected output at the target GSM, width, fiber composition, and quality requirements rather than relying solely on maximum line speed.

What Information Should You Provide to the Equipment Manufacturer?

A detailed technical brief makes equipment selection considerably more accurate. At minimum, it should include the fiber type, fiber blend, target GSM range, finished width, thickness requirements, production target, end-use application, and applicable product standards.

It is also helpful to provide information about future products. If the factory plans to expand from one technical textile category into several related applications, the line should be evaluated for its operating flexibility from the beginning. This can prevent the manufacturer from investing in equipment that performs well for today's product but becomes restrictive when the product portfolio expands.

Sample fibers and, where possible, sample finished fabrics are even more valuable. Production trials allow the equipment supplier to evaluate web formation, needle penetration, punching density, fabric weight, thickness, and output under realistic conditions.

What Is the Most Reliable Way to Compare Different Production Lines?

The most meaningful comparison is to ask competing suppliers to work against exactly the same product specification. Compare the expected output, GSM tolerance, usable width, fiber compatibility, punching parameters, energy requirements, automation functions, maintenance requirements, and after-sales support under equivalent conditions.

Buyers should also distinguish between equipment specifications that are guaranteed and figures that represent theoretical maximum performance. A line with a slightly lower nominal speed may produce more saleable fabric if it maintains better uniformity and requires fewer interruptions.

The right needle-punched nonwoven production line is ultimately the one that can repeatedly manufacture the required fabric—not merely the one with the highest speed or widest working width. A sound selection process begins with the finished product, works backward through fiber preparation and web formation, and then determines the needle-punching and control configuration needed to achieve the target performance. This product-first approach provides a more reliable basis for investment, production planning, and long-term capacity expansion.
