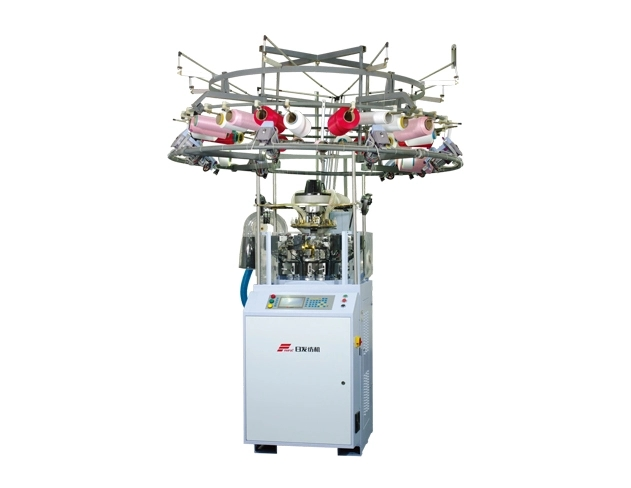

RIFA Textile Machinery has been committed to the research of value-added knitting technology, aiming to help customers manufacture better products in a more economical way. The successful development of RFSM seamless machine is out of this effort. The seamless knitting machine can use natural fiber, synthetic fiber, artificial fiber, spandex and covering yarn as raw materials, and serves as special processing equipment for one-time knitting and production.

Get A Quote   PDF Download

Specification

Specification of RFSM20 Seamless Machine

Items	Technical Parameters
Product function	Applicable for weaving various underwear, underpants, bras, sportswear, outerwear, etc.
Applicable knitting yarns	Cotton yarn, wool yarn, chemical fiber yarn, spandex covering yarn blended yarn, etc.

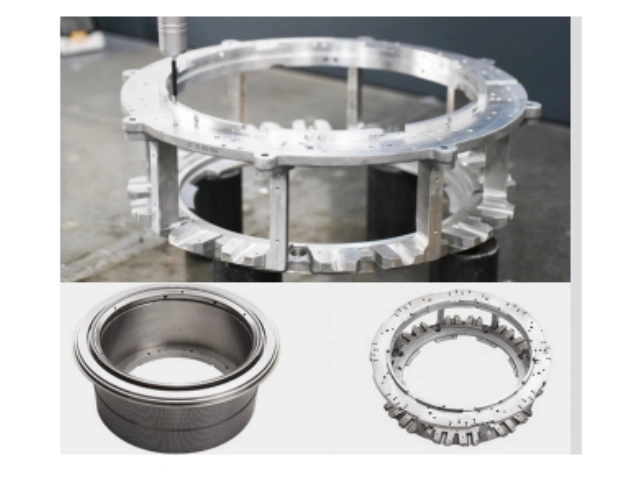

Cylinder diameter	12-20 inches
Needle gauge	16-32 stitches/inch
Number of feeds	8 for every diameter

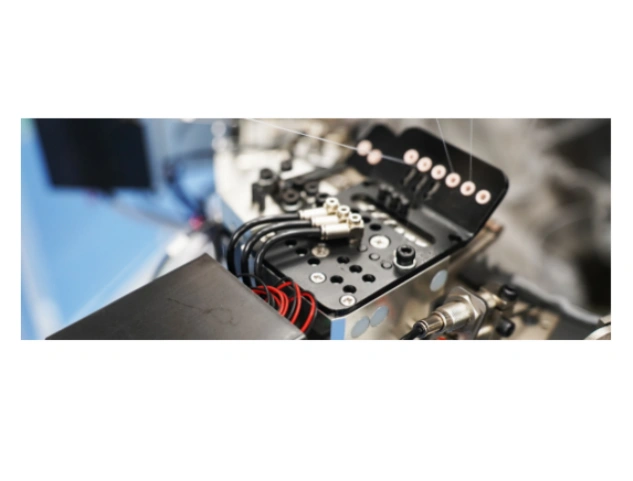

Yarnfinger	8 pieces/feed
Actuator	16-level, 2 pieces/feed

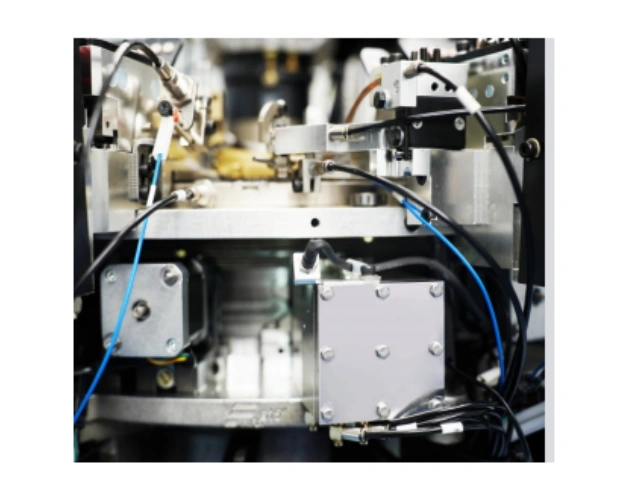

Stitch cams	1 per feed, controlled by a stepping motor, the density of the same row is adjustable

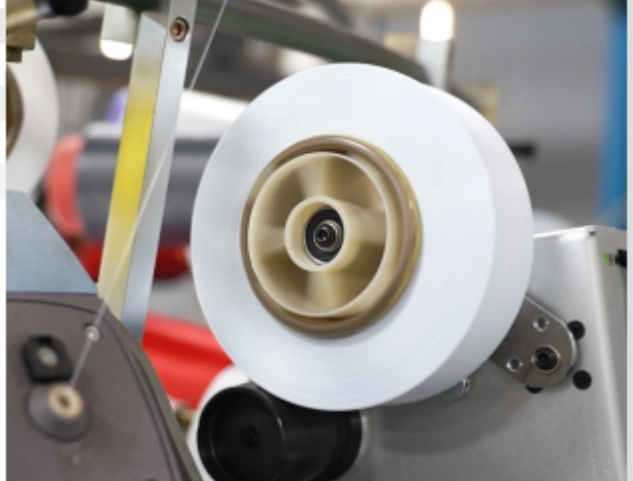

Yarn storage device	1 pieces/feed (optional 2 pieces/feed)
Constant tension yarn feeder	2, up to 10
Broken yarn sensor	Total 43 sensors (51 sensors optional)
Compressed air	Flow: 50L/min, Pressure: 0.6—0.7MPa
Suction air	Flow: 10M3/min, pressure: -0.8MPa
Net weight	Approx. 700Kg
Maximum speed	Max. 95RPM for RFSM20, max.
Lubrication	The lubrication amount of knitting needles, sinkers, and selecting pieces can be controlled
The function of adding yarn jacquard	The function of adding yarn jacquard with special effect
Tying technology	Available to weave single or multiple rubber-lined double-layer waist weaves
Real pile loop device	Available to add real pile loop structure, equipped with main loop adding jacquard function
Power-off protection	Support work site protection for sudden power failure, automatic detection, automatic shutdown, and automatic power off
Spandex yarn feeding device (optional)	1 set

Features

Features of RFSM20 Seamless Machine

Advanced Technology: The RFSM20 Seamless Machine is equipped with the latest technology that ensures high-quality production. The Seamless knitting Machine uses computerized programming for precise and accurate stitching, reducing errors and enhancing the overall quality of the underwear.

High Efficiency: This Seamless knitting Machine is designed for high-speed production, significantly reducing the time taken to manufacture underwear. It can seamlessly stitch and cut fabric, making it ideal for mass production. Its high efficiency makes it a cost-effective solution for businesses.

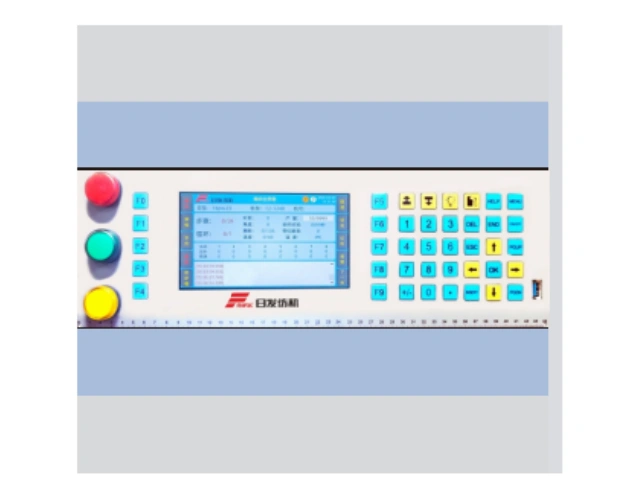

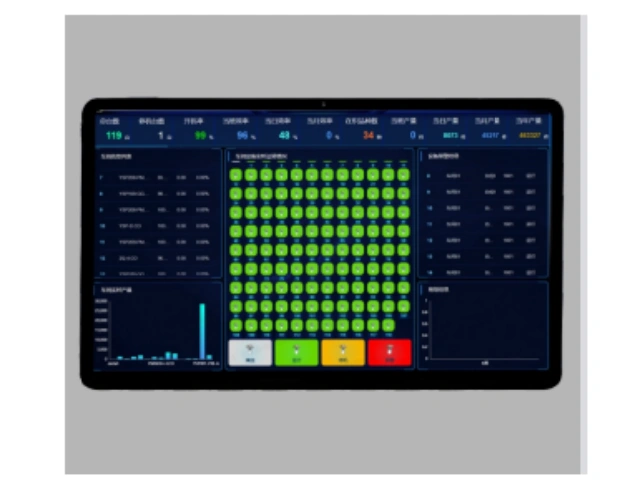

User-Friendly Design: The RFSM20 Seamless Machine features a user-friendly interface, making it easy to operate even for beginners. It comes with clear instructions and controls, allowing operators to easily adjust the machine’s settings according to their needs. This feature not only simplifies the production process but also increases productivity.

Bare Spandex Weaving Process of RFSM20 Seamless Machine

The bare spandex fabrics produced by RFSM seamless underwear machine through intelligent and advanced spandex control system and combined with high needle distance knitting components, are featured at soft texture, delicate feeling, smoothness and brightness. The fabrics produced in combination with pure cotton, colored cotton, modal and other face yarns ensure good hygroscopicity and gas permeability, dangling and floating, with excellent elasticity and extension performance to maximize the curvature of human body, and sculpt the sexy and charming beauty of women, which serves as future development trends of knitted underwear.
